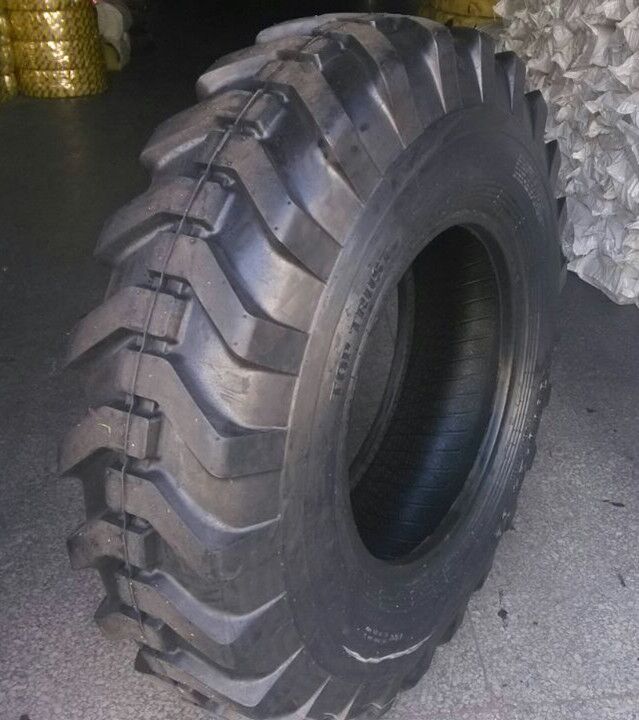

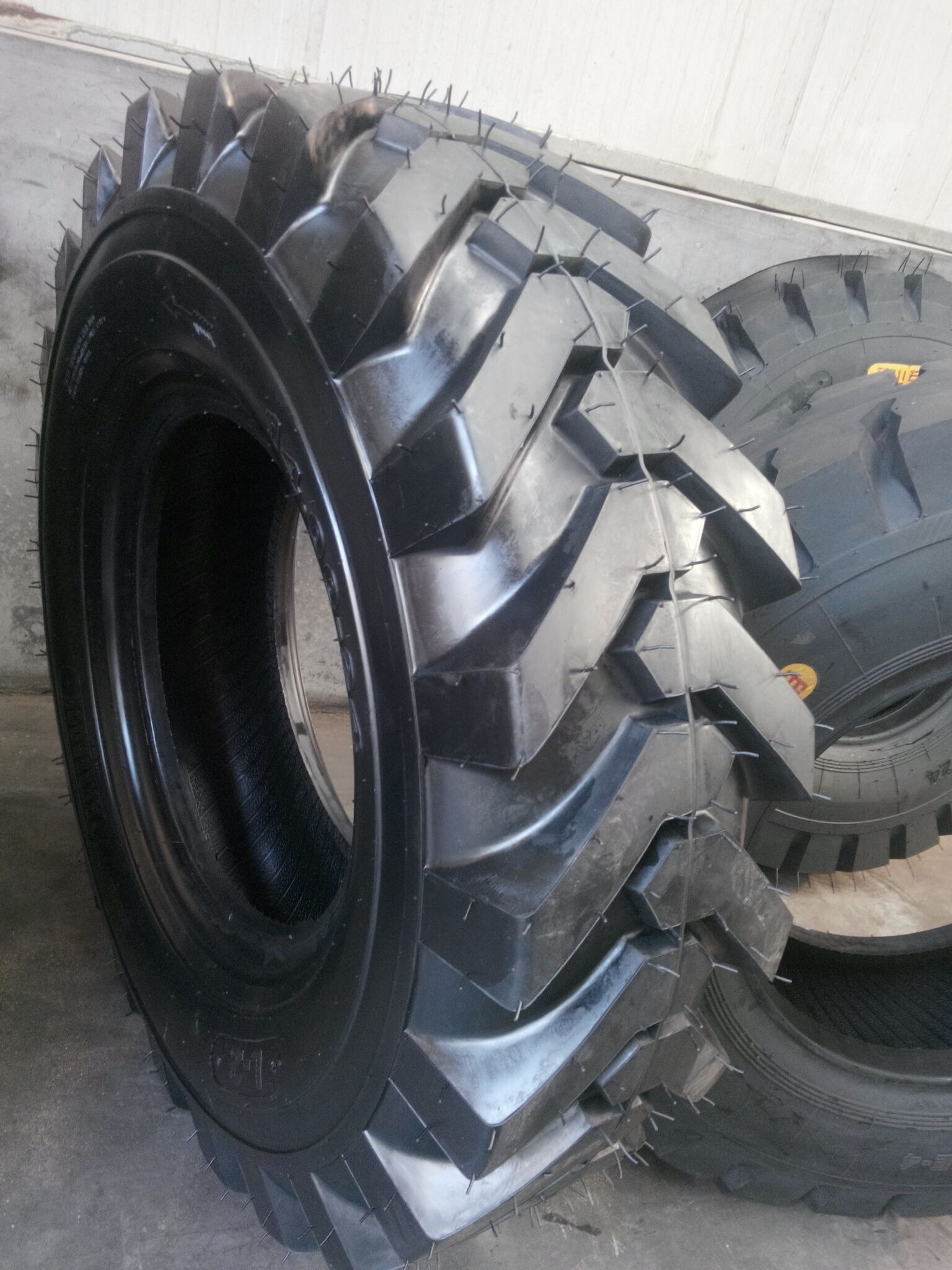

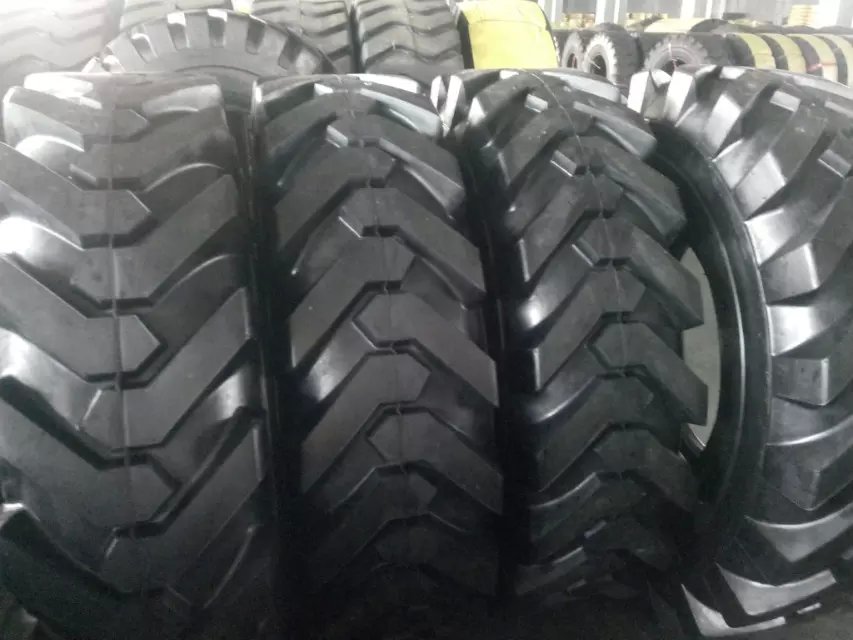

Our grader tires of the G2/L2 pattern which was Heavy duty continous lug bar design for sure grip on mixed surfaces. Super strong casing, premium construction materials and special engineered tread compounds to support longevity in heavy duty applications.
The available size of our OTR grader tyres:
15.5-25, 17.5-25, 20.5-25, 23.5-25, 26.5-25, 13.00-24, 14.00-24
Technical Data:
| Size | Ply Rating | Standard Rim | Overall Diameter (MM) |
Section Width (MM) |
Pressure (KPA) |
Max Load (KG) |
| 15.5-25TT/TL | 12 | 12.00/1.3 | 1275 | 395 | 225 | 2650 |
| 15.5-25TT/TL | 16 | 12.00/1.3 | 1275 | 395 | 325 | 3200 |
| 17.5-25TT/TL | 12 | 14.00/1.5 | 1350 | 445 | 200 | 2900 |
| 17.5-25TT/TL | 16 | 14.00/1.5 | 1350 | 445 | 275 | 3350 |
| 20.5-25TT/TL | 12 | 17.00/2.0 | 1490 | 520 | 175 | 3550 |
| 20.5-25TT/TL | 16 | 17.00/2.0 | 1490 | 520 | 225 | 4000 |
| 20.5-25TT/TL | 20 | 17.00/2.0 | 1490 | 520 | 275 | 4500 |
| 23.5-25TT/TL | 12 | 19.00/2.5 | 1615 | 595 | 150 | 4000 |
| 23.5-25TT/TL | 16 | 19.00/2.5 | 1615 | 595 | 200 | 4750 |
| 23.5-25TT/TL | 20 | 19.00/2.5 | 1615 | 595 | 250 | 5450 |
| 13.00-24TT/TL | 12 | 8.00 | 1275 | 335 | 300 | 2725 |
| 13.00-24TT/TL | 16 | 8.00 | 1275 | 335 | 425 | 3275 |
| 14.00-24TT/TL | 12 | 8.00 | 1345 | 360 | 275 | 3075 |
| 14.00-24TT/TL | 16 | 8.00 | 1345 | 360 | 375 | 3650 |
