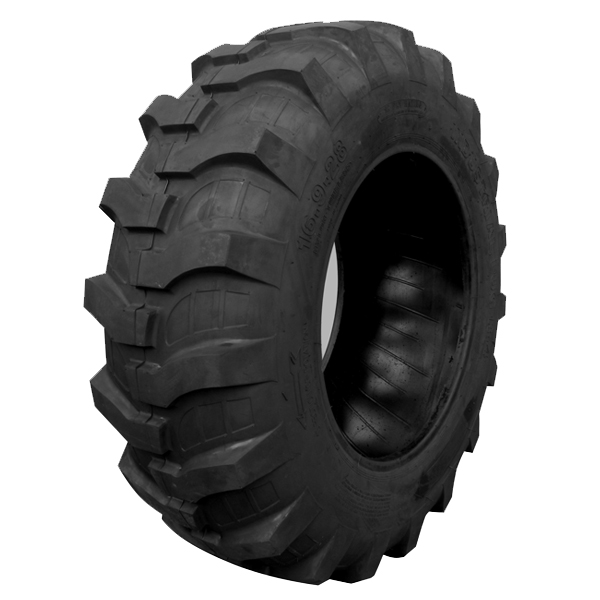

There are many backhoe tires sizes and tread designs available in the market today, however the usage depends on the ground type it operates, the weight and type of materials it will carry, and workload involved (e.g. light duty versus heavy duty). Before choosing a particular tire, these considerations should be taken into account.
Available sizes:
10.5/80-18, 12.5/80-18, 16.9-24, 16.9-28, 17.5L-24, 19.5L-24, 21L-24, 18.4-26 etc.
Technical Data:
Size | Ply Rating | Standard Rim | Overall Diameter (MM) |
Section Width (MM) |
Pressure (KPA) |
Max Load (KG) |
16.9-24TL | 12 | W15L | 1309 | 429 | 260 | 3250 |
16.9-28TL | 12 | W15L | 1410 | 429 | 200 | 3450 |
17.5L-24TL | 12 | W15L | 1240 | 445 | 220 | 2800 |
19.5L-24TL | 12 | DW17 | 1314 | 495 | 230 | 3450 |
21L-24TL | 14 | DW18 | 1378 | 533 | 250 | 4200 |
18.4-26TL | 12 | DW16 | 1450 | 467 | 230 | 2985 |
