Sprayer tyres, Rice transplanter tires and wheels, Agricultural tyres, tractor tires, Industrial Tyres, OTR Tires, skid tires, truck tires

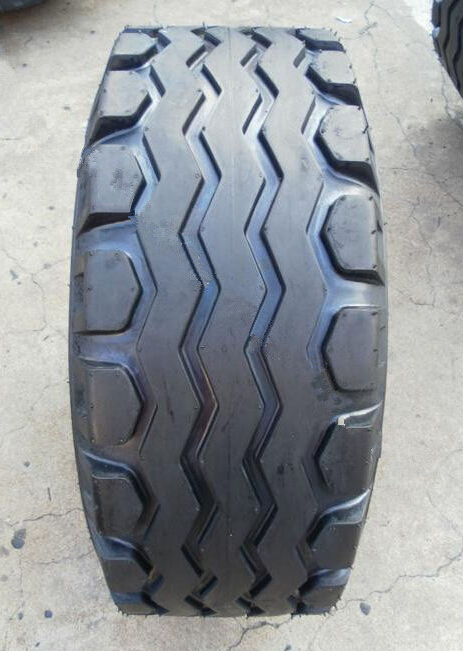

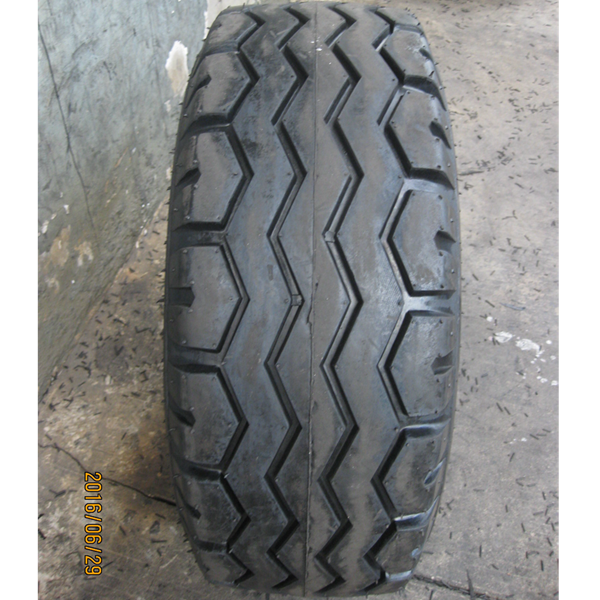

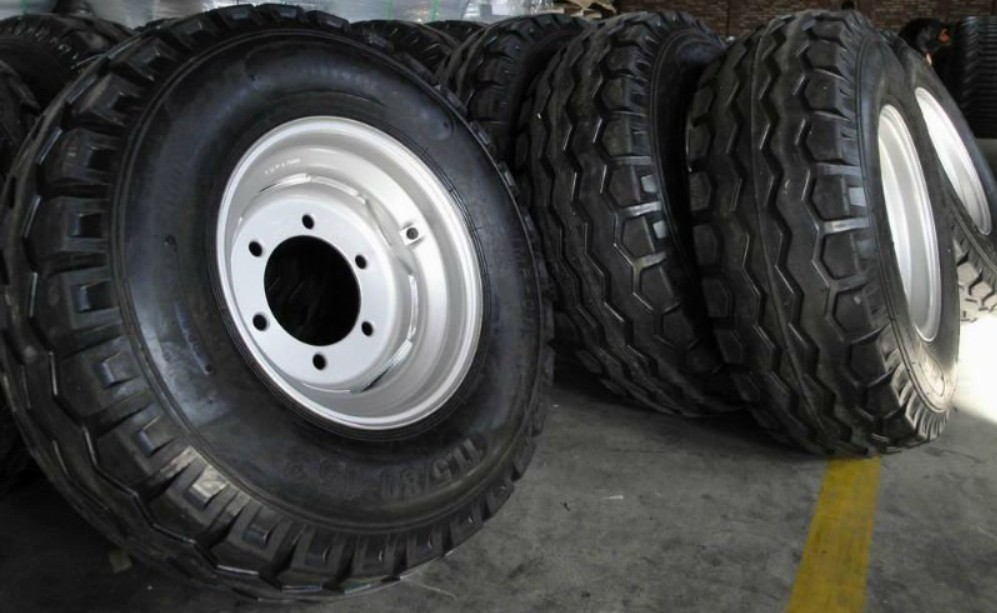

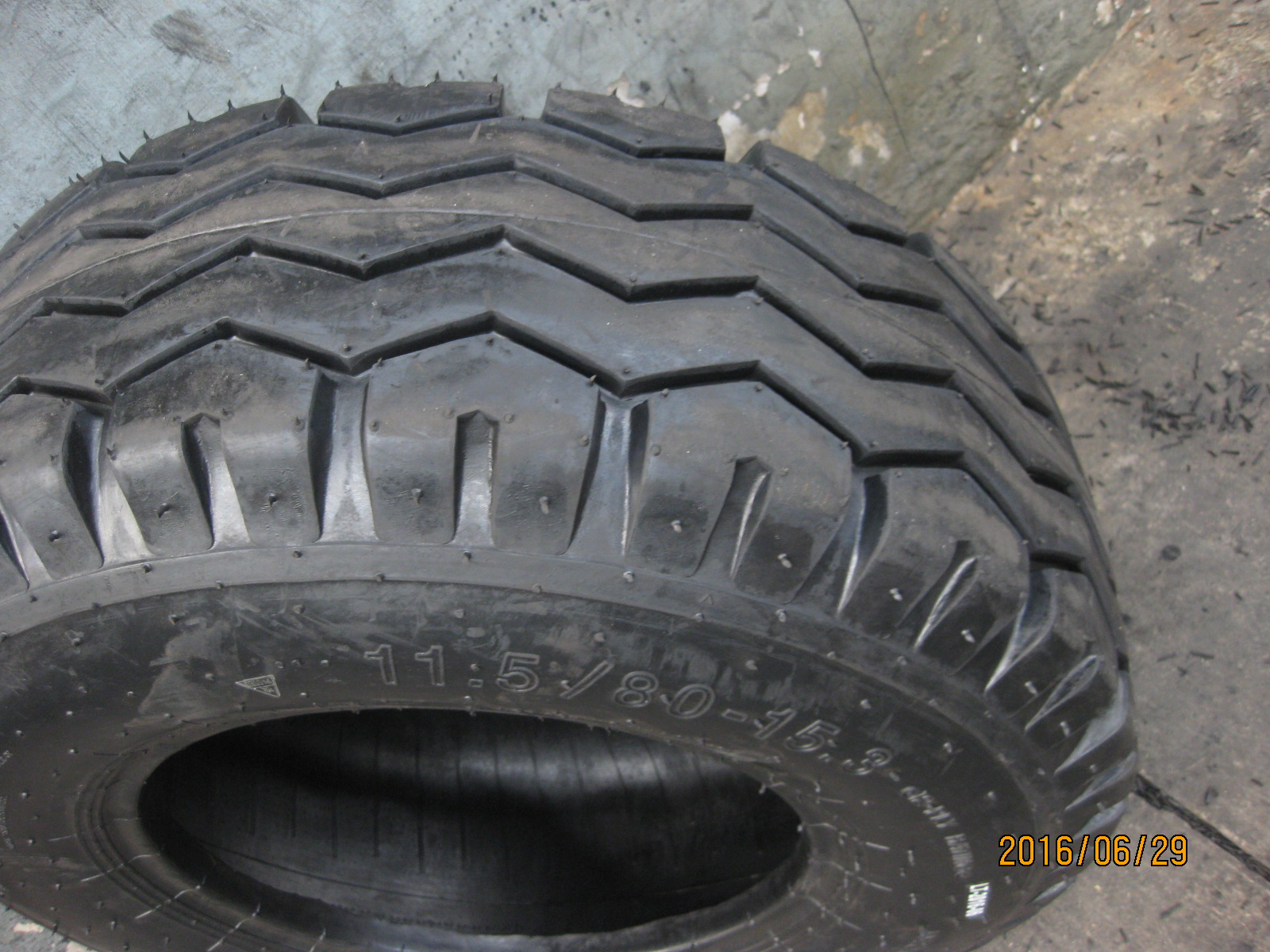

agricultural implement tyres with rim available sizes:
10.0/80-12, 10.5/65-16, 10.0/75-15.3, 10.5/70-15.3, 11.5/80-15.3, 12.5/80-15.3, 13.0/65-18 etc.
Technical Data:
| Size | Ply Rating | Standard Rim | Overall Diameter (MM) | Section Width (MM) | Pressure (KPA) | Max Load (KG) |
| 10.0/80-12TL | 12 | 9.00 | 710 | 264 | 310 | 1700 |
| 10.5/65-16TL | 12 | 9.00 | 755 | 274 | 370 | 1850 |
| 10.0/75-15.3TL | 12 | 9.00 | 780 | 264 | 390 | 1525 |
| 10.5/70-15.3TL | 12 | 9.00 | 845 | 274 | 400 | 2180 |
| 11.5/80-15.3TL | 12 | 9.00 | 865 | 290 | 410 | 2145 |
| 12.5/80-15.3TL | 12 | 9.00 | 889 | 307 | 440 | 2650 |
| 13.0/65-18TL | 16 | 11.00 | 890 | 336 | 490 | 3815 |
